1KVA to 5KVA Off Grid High Efficiency Solar Inverter/ charger supply continuous power for solar system

FOB Reference Price:Get Latest Price
$200.00 - $400.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
OEM
Model Number:
MKS
Size:
128*272*355/ 140*295*540mm
Weight:
7.6 to 13.5kg
Input Voltage:
230V
Output Type:
Single
Type:
DC/AC Inverters
Output Power:
>1000KW
Output Voltage:
230VAC(+/-5% )
Output Frequency:
50Hz/60Hz
Output Current:
18A/25A/60A
Product Name:
Off Grid High Efficiency Solar Inverter 1KVA to 5KVA
Application:
off grid solar system
Normal Voltage:
24V/48V
Rated Power:
1600w/2400w/3200w/4000w
Waveform:
Pure sine wave
Standby power consumption:
2W
Max charge current:
98%
Advantage of Inverter:
supply continuous power
Combining:
solar system, AC utility, and Battery power source
Built-in:
MPPT 50A/60A solar charge controller
Supply Ability
Supply Ability:
10000 Set/Sets per Month Off Grid Solar Inverter
Packaging & Delivery
Packaging Details
Carton and wooden box or pallets for Off Grid Solar Inverter
Port
Xiamen

SWT4_01

Product Description

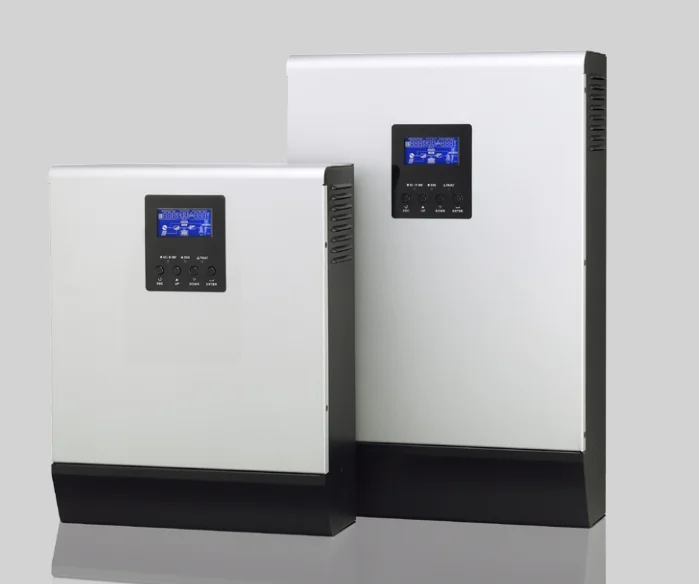

1KVA to 5KVA Off Grid High Efficiency Solar Inverter

supply continuous power for solar system

MODEL1K-242k-243k-244K5K
Rated Power1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage230VAC
Selectable Voltage Range170-280VAC(For Personal Computers)
90-280VAC(For Home Appliances)
Frequency Range50/60Hz(Auto sensing)
OUTPUT

AC Voltage Regulation

(Batt. Mode)

230VAC±5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency(Peak)90-93%93%
Transfer Time10 ms(For Personal Computers)
20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC CHARGER
Battery Voltage24 VDC24 VDC 24 VDC48 VDC
Floating Charge Voltage27 VDC27 VDC27 VDC54 VDC
Overcharge Protection31 VDC31 VDC31 VDC60 VDC
Maximum Charge Current0A or 10A/20A20A or 30A20A or 30A20A or 30A20A or 30A
SOLAR CHARGER
Maximum PV Array Power600 W600 W600 W/1500W3000 W3000W

MPPT Range@

Operating Voltage

30 VDC-66VDC30 VDC-66VDC30 VDC-66VDC
60 VDC-115 VDC
60 VDC-115 VDC60 VDC-115 VDC

Maximum PV Array

Open Circuit Voltage

75VDC75VDC75VDC145 VDC145VDC
Maximum Charging Current25A25A25A60A60A/80A
Maximum Efficiency98%
Standby Power Consumption2W
PHYSICAL
Dimension, D x W xH(mm)128*272*353128*272*353
140*295*540
140*295*540
Net weight(kgs)7.47.6812.513.5
OPETATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condesing)
Operating Temperature0℃-65℃
Storage Temperature-15℃-60℃
Product specifications are subject to change without futher notice
MODEL1K-242K-243K-244K5K
Inverter Power800W1600W2400W3200W4000W

Pmax. generated

 from solar changer

25AMP 600W25AMP 600W25AMP 600W/60AMP 1500W60AMP 1500W80AMP 4000W
Best Panel Configuration

500Wp

(250Wp*2pcs)

500Wp

(250Wp*2pcs)

500Wp(250Wp*2pcs)

3000Wp

(250Wp*12pcs)

3000Wp

(250Wp*12pcs)

1500Wp(250Wp*6pcs)





Feature and Function:

* Pure sine wave inverter

* Built-in MPPT solar charge controller

* Selectable input voltage range for home appliance and personal computers

* Selectable charging current based on applications

* Configurable AC/Solar input priority via LCD setting

* Compatible to mains voltage or generator power

* Auto restart while AC is recovering

* Overload and short circuit protection

* Smart battery charger design for optimized battery performance

* Cold start function
