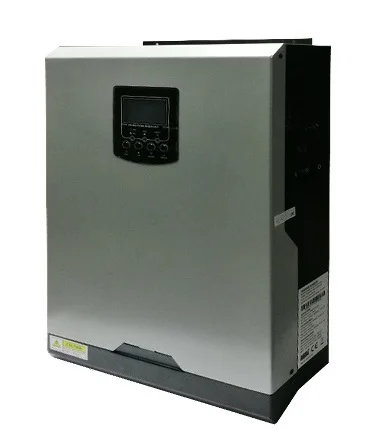

Best off grid solar system hybrid off grid solar inverter built in MPPT controller without battery for home use and sale

FOB Reference Price:Get Latest Price
$340.00 - $410.00 / Sets | 1 Set/Sets (Min. Order)
Output Power:
1 - 200KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
SWT Off Grid inverter
Model Number:
HF-NB
Output Type:
Single
Size:
100*300*440mm
Weight:
9-10KG
Input Voltage:
230VAC, 230VAC
Output Voltage:
120-450VDC
Type:
DC/AC Inverters
Output Frequency:
50HZ /60HZ (Auto Sensing)
Output Current:
80A/60A
Product name:
off grid solar inverter built in MPPT controller without battery
Inverter type:
off grid
Output waveform:
Pure Sine Wave
Max charging current:
80A
Rated power:
3200-50000W
PF:
1
Standby power consumption:
2W
Overcharge protection:
33VDC-63VDC
Communication interface:
USB/RS232
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton and wooden box or pallets for best off grid solar system hybrid off grid solar inverter built in MPPT controller without battery for home use and sale
Port
Xiamen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

Best off grid solar system hybrid off grid solar inverter built in MPPT controller without battery for home use and sale

Product Description







Feature:

Feature:

Integrates: high efficiency pure sine wave inverter(PF=1)

wide PV input range(120Vdc--500Vdc)80A MPPT SCC

intelligent 3 stage 80A AC battery charger

Surges to 2X continuous power for 5 seconds for motor loads.

Intelligent functionality enables utility and solar input prioritization.

Wide utility input range(90Vac--280Vac)for unreliable grid even in the most challenging environments.

Field serviceable with replacement boards and spare parts.

Monitor, troubleshoot, or communication with USB/RS232.

System configures quickly into compact, wall-mounted system.

Introduction:

The HY-NB series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business,

and it also delivers a value added,easy to install system that provides efficient power globally for every need.



Benefits Model:



It can be running without batteries,energy share from utility and solar to loads alternatively. Without batteries, it can help to reduce the whole solar system cost and more importantly it can save electricity fee.



It combines a high PV input MPPT controller, it can convert solar energy from PV to loads directly and at the same time the remaining solar energy converted to batteries.



When PV output is reduce by cloud or at night, resulting in no surplus PV power available, loads powered by utility and batteries is charged, when utility outage, batteries discharged.

Model3200-245000-48
Rated Power3200VA/3200W5000VA/5000W
INPUT
Voltage 230VAC
Selectable voltage range 170-280VAC (For personal Computers)
90-280VAC(For home Appliances)
Frequency range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage regulation (Batt.Mode)230VAC±5%
Surge Power6400VA10000VA
Efficiency (Peak) PV to INV97%
Efficiency (Peak) Battery to INV94%
Transfer time10ms (For personal computers):20ms (For home appliances)
WaveformPure sine wave
BATTERY&AC CHARGER
Battery voltage24VDC48VDC
Floating charge voltage27VDC54VDC
Overcharge protection33VDC63VDC
Maximum charge current80A60A
SOLAR CHARGER
Maximum PV Array power4000W5000W
MPPT RANGE@OPperating voltage120-450VDC
Maximum PV Array open circuit voltage500VDC
Maximum charging current80A
Maximum efficiency98%
PHYSICAL
Dimension,D*W*H(mm)100*300*400
Net weight(kg)910
Communication interfaceUSB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Humidity5% to 95% Relative humidity (Non-condensing)
Operating temperature0℃-55℃
Storage temperature-15℃ -60℃
